— Variable axial piston pump of swashplate design for hydrostatic drives in open circuit hydraulic system.
— Designed primarily for use in mobile applications.
— The pump operates under self-priming conditions,with tank pressurization,or with an optional built-in charge pump (impeller).
— A comprehensive range of control options is available matching any application requirement.
— Power control option is externally adjustable,even when the pump is running.
— The through drive is suitable for adding gear pumps and axial piston pumps up to the same,i.e.100% through drive.
— The output flow is proportional to the drive speed and infinitely variable between qvmax and qvmin=0



Features:

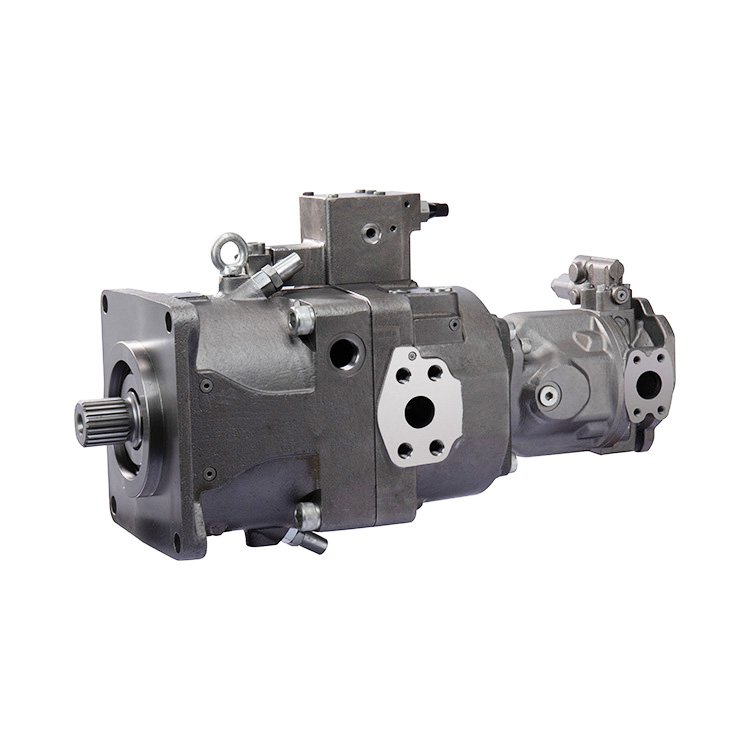

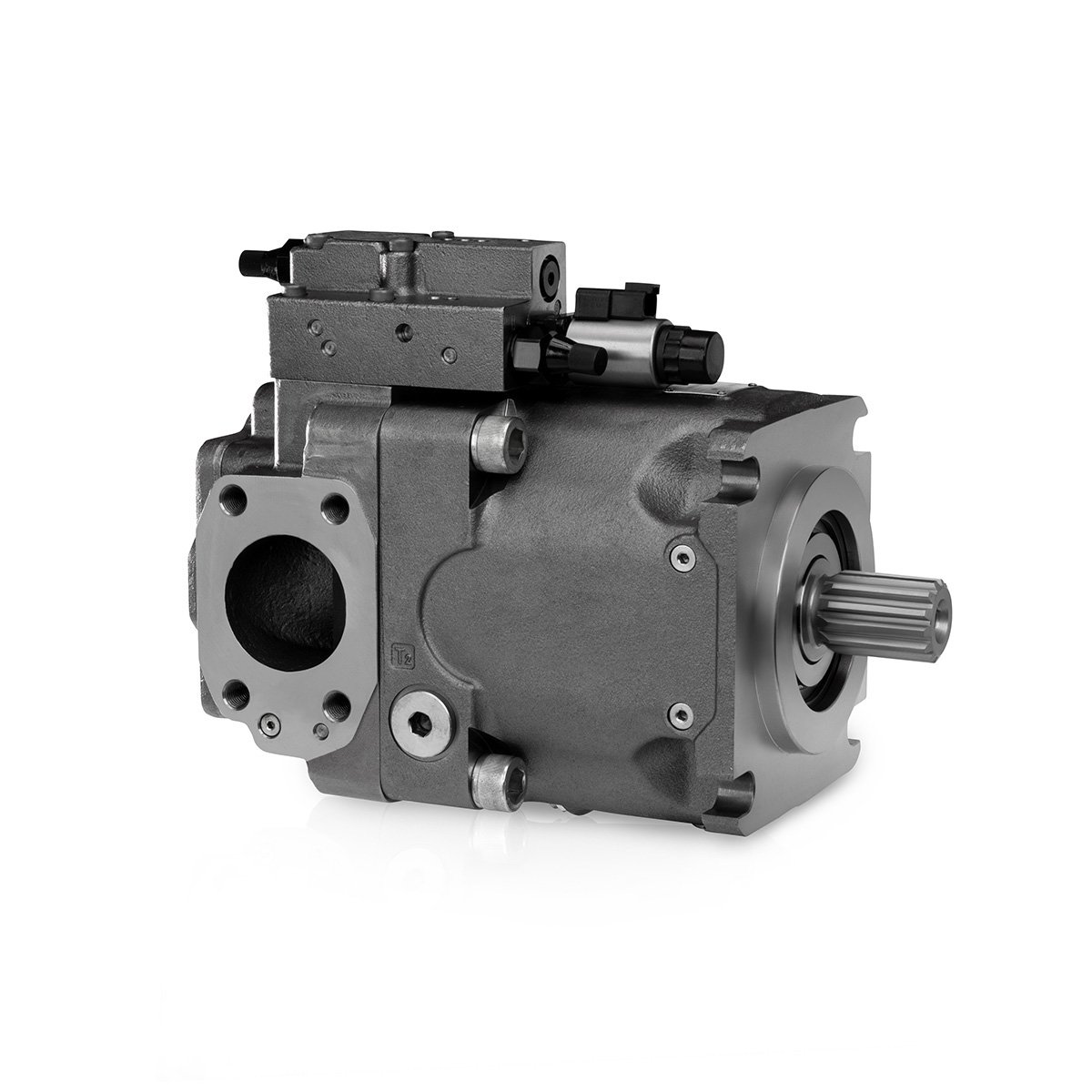

The A11VO is a variable displacement pump of axial piston swashplate design for use in open circuit hydrostatic drives.
Designed principally for use in mobile applications.
The pump operates under self-priming condition, with tank pressurisation or with charge pump (impeller).
A wide variety of controls are available.
Setting of the constant power control is possible via external adjustments, even when the unit is operating.
The pump is available with a through drive to accept a gear pump or a second axial piston pump up to the same size
(100 % through drive).
SAE mounting flange.
Output flow is proportional to drive speed and pump displacement and is steplessly variable between maximum and zero.

Model & Sizes Available:



Size	40, 60, 75, 95, 130, 190, 260
Model	A11VLO260DR/11R-NPD12NOO, A11VO190DR/11R–NPD12NOO, A11VO190EP2 /11R–NPD12N00, A11VO260DR/11R–NPD12NOO, A11VO260DRG/11R–NPD12NOO, A11VO95DRS/10R–NZD12NOO, THM A11VLO190DR/11R–NPD12NOO, THM A11VLO190EP2/11R–NPD12NOO
